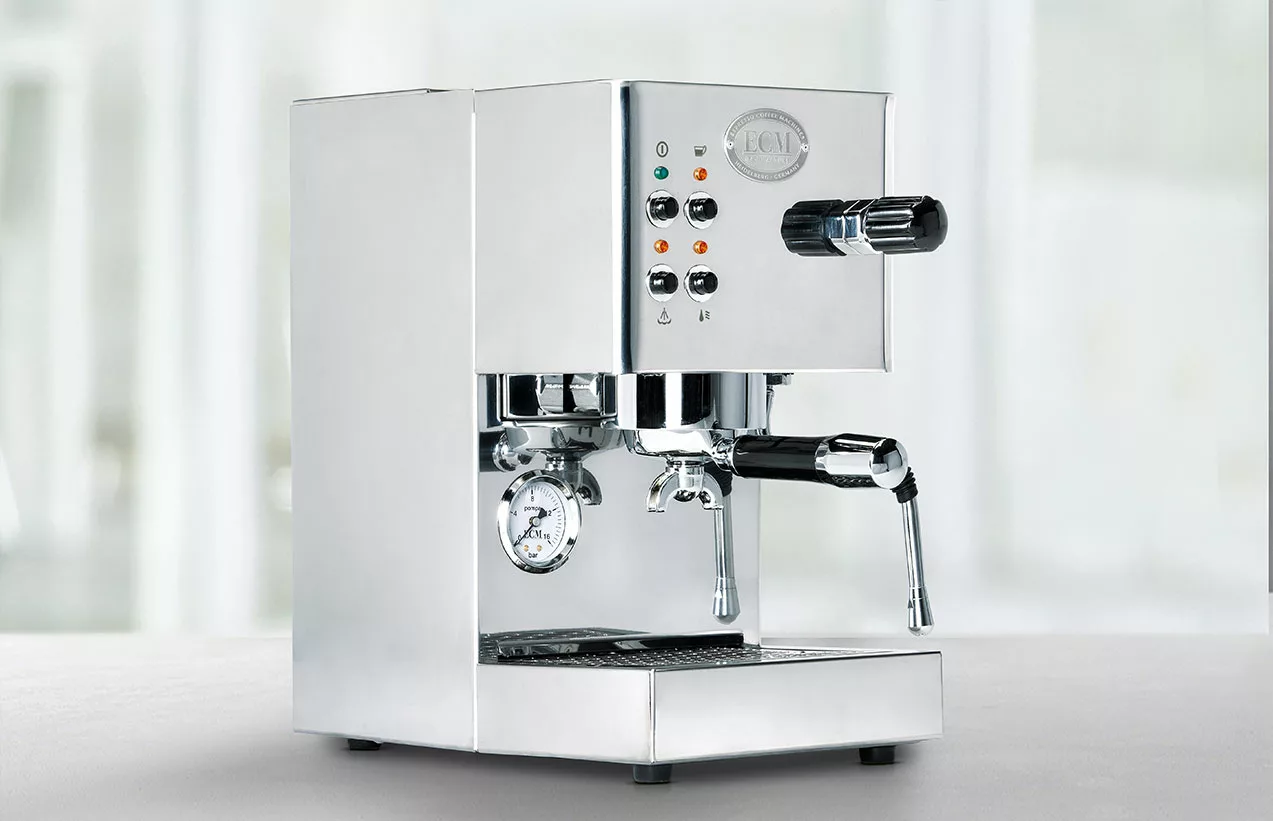

ECM Casa V Espresso Machine
The ECM Casa V espresso machine from 1st-line Equipment. Single boiler technology, combining German engineering & Italian craftsmanship.
If you are looking for a compatible grinder that pairs well with the ECM Casa V Espresso Machine check out the Eureka Perfetto Espresso Coffee Grinder.
[/ux_text]
[gap height=”100px”]
[scroll_to title=”Videos” link=”Videos”]
[title style=”bold-center” text=”Videos”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
[aiovg_videos template=”playlist” tag=”32941″ order=”asc” limit=”” show_tag=”0″ playlist_width=”400″ playlist_height=”” autoadvance=”1″]
[/ux_text]
[gap height=”100px”]
[scroll_to title=”Features” link=”Features”]
[title style=”bold-center” text=”Features”]
[row v_align=”middle”]
[col span=”6″ span__sm=”12″ divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]

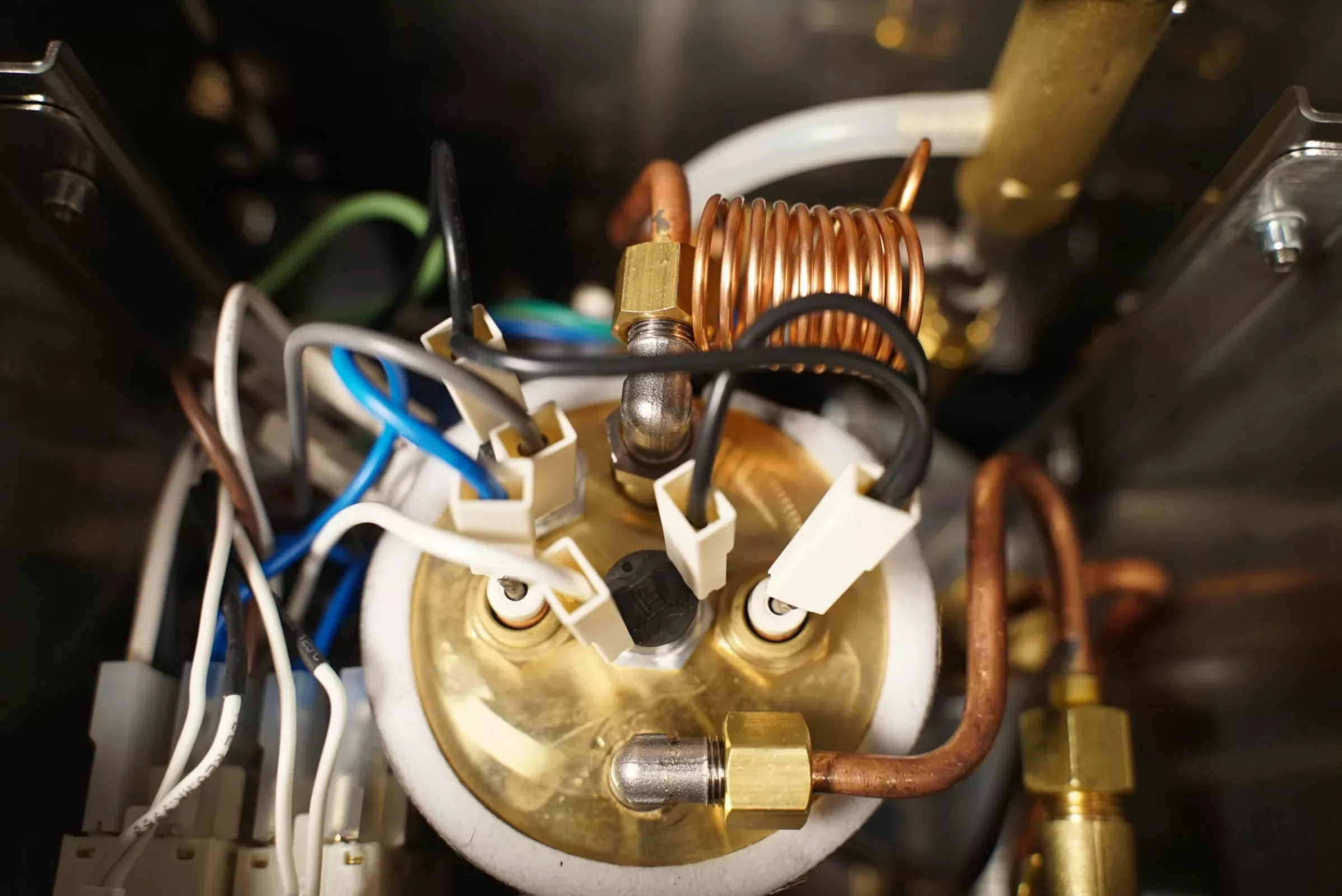

Single boiler, dual purpose system
- Brass, insulated: The ECM Casa V boiler is made of brass which retains heat better than stainless steel. In general, copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend using a water softener. The manufacturer wraps the boiler with insulation for maximum heat retention.
- Boiler volume: With a 0.4 liter capacity, this machine has one of the largest boilers on the market under $1,000.
- High wattage heating element: The heating element rates at a very high 1200 watts. This allows for quicker reaction time when cold water enters the boiler, shorter heat up times, and quick transition from coffee to steam mode.
- Over pressure valve (O.P.V.): Easy access on the top of the machine, underneath the cup warming tray. To point out this adjusts the brew pressure. Turn clockwise to increase and counter-clockwise to decrease.
[/ux_text]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265829″ image_size=”original”]
[/col]
[/row]
[row width=”full-width” v_align=”middle”]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265821″ image_size=”original”]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Controls
- Push button controls: Simple to use. All controls are on the front face of the machine. The main controls are on the left side in a 2×2 grid.
- Coffee switch: Located in the front upper right. The light above indicates the pump is on running water through the grouphead.
- Steam switch: Located in the front lower left. The light above indicates the heating element is active.
- Hot water switch: Located in the front lower right. The light above indicates the wand is active for hot water.
[/ux_text]
[/col]
[/row]
[row v_align=”middle”]
[col span=”6″ span__sm=”12″ divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Pressure gauge
- Pressure gauge: In brief the gauge displays in real time the pressure during coffee extraction. Only 9-10 bar is needed to make espresso. This gauge will help perfect your espresso shot.
- Display: To clarify, our current stock has the newer display that reads every 4 bar.
[/ux_text]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265820″ image_size=”original”]
[/col]
[/row]
[row width=”full-width” v_align=”middle”]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265817″ image_size=”original”]
[/col]
[col span=”6″ span__sm=”12″ divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Steam / water wand
- Multi-purpose: Used for both steam or hot water depending on the current mode.
- Multi-directional: Allows for flexibility to steam on the side of the machine. Enables you to prepare creamy cappuccinos.
- Very short wait time: The small boiler and very high wattage heating element. As a result, it cuts the wait time from coffee to steam.
[/ux_text]
[/col]
[/row]
[row v_align=”middle”]
[col span=”6″ span__sm=”12″ divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Vibration Pump
- Efficient: 41 watts (manufacturer can change), rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
- Cost-effective: To point out, pumps will degrade in performance over time and usually average useful life is 5 years. Easy area to self-replace. In the long run, replacing a vibration pump will cost less than a rotary vane pump.
[/ux_text]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265828″ image_size=”original”]
[/col]
[/row]
[row width=”full-width” v_align=”middle”]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265816″ image_size=”original”]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Tank / Reservoir
- Open top: Easy to fill. Easy to clean.
[/ux_text]
[/col]
[/row]
[row v_align=”middle”]
[col span=”6″ span__sm=”12″ divider=”0″]
[ux_text font_size=”1″ font_size__sm=”0.9″]
Parts & accessories included
- Portafilters: Dual spout portafilter. 58 mm in diameter. Commercial grade quality similar to the other ECM machines.
- Filter baskets: 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. Blind filter basket which you use for backflushing. 58 mm in diameter.
- Tamper: A solid 58mm tamper. In short, you don’t need to upgrade.
- Cleaning brush: A brush specifically for cleaning the grouphead. There are ridges on the neck of the brush to help prevent scalding water from reaching your hand.
- Silicon hose: This attaches to the water tank adapter if you are going to use an in line water softener.
Instructional manual: Written in 3 languages: German, English, and Dutch.
[/ux_text]
[/col]
[col span=”6″ span__sm=”12″ force_first=”small” divider=”0″]
[ux_image id=”265815″ image_size=”original”]
[/col]
[/row]
[gap height=”100px”]
[scroll_to title=”Specifcations” link=”Specifications”]
[title style=”bold-center” text=”Specifications”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
[product_additional_information]
[/ux_text]
[gap height=”100px”]
[scroll_to title=”Notes” link=”Notes”]
[title style=”bold-center” text=”Notes”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
- Shopping for best price: First thing to remember, when shopping for this espresso machine, please keep in mind that 1st-line Equipment stocks many spare parts for this machine so 1st-line’s customers can be serviced if there are any problems. Please keep in mind the selling dealer is responsible dealer in the selling country is for providing the service and warranty. ECM Germany does not have a worldwide labor warranty and will not ship parts directly to customers worldwide. Hence, it is best to check the dealer’s web site for spare parts.
- Direct water connection: This model can only operate using the water tank. It cannot be hooked up to a water line.
- Steam nozzle: As of July 5, 2013, ECM Germany has confirmed the steam nozzle has 1/8″ inner thread. Please note that ECM, like most manufacturers, can make changes without prior notification. Therefore, please check your machine before ordering any steam tips.
- Manufacturer Report: on lead content
Rolls Royce: Rolls Royce is a trademark of its respective owner. - E61 Flow Control: Please note that the Casa V is not compatible with the E61 Flow Control.
[/ux_text]
[block id=”303727″]
[gap height=”100px”]
[scroll_to title=”Support” link=”Support”]
[title style=”bold-center” text=”Support”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
[/ux_text]
[gap height=”100px”]

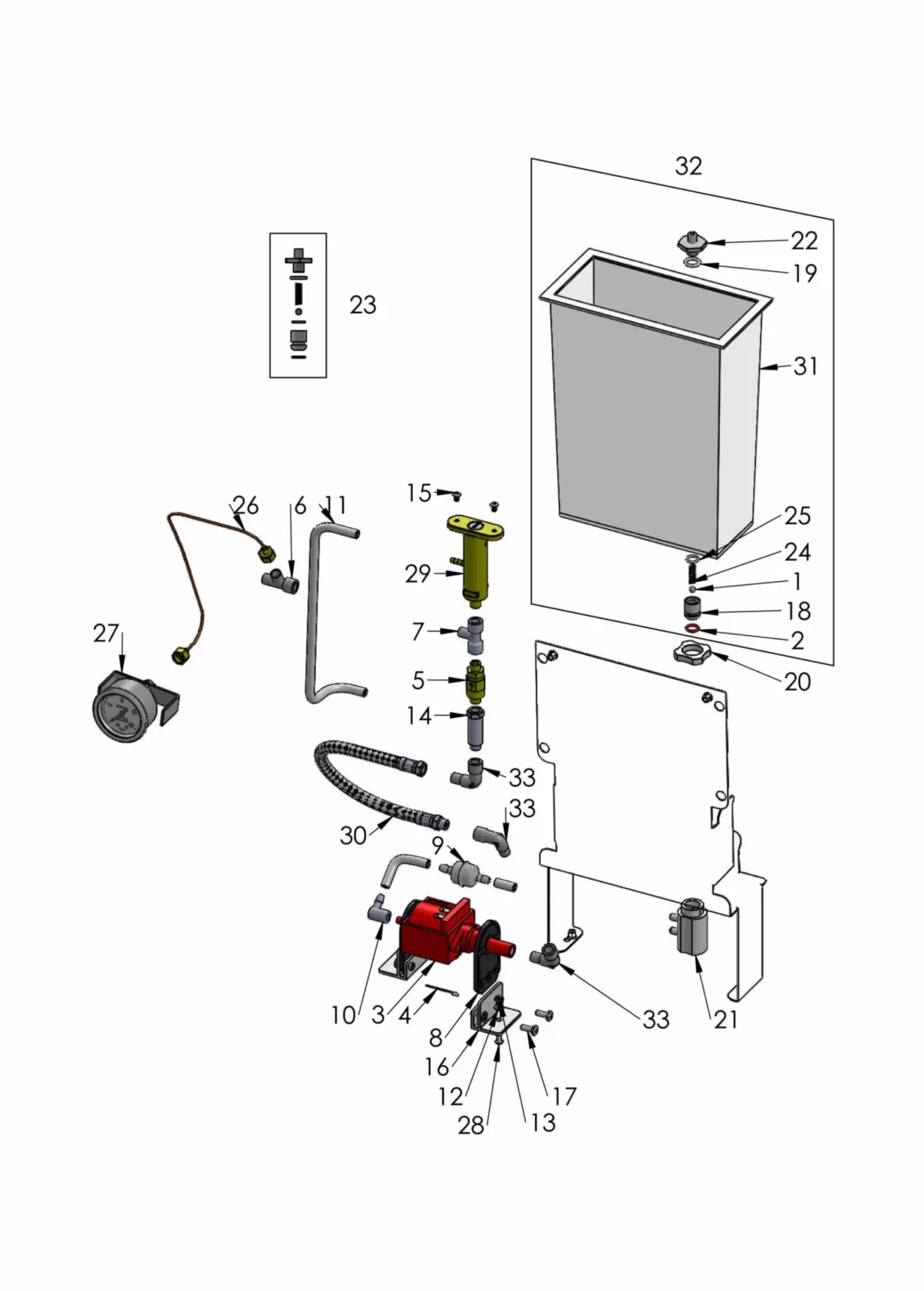

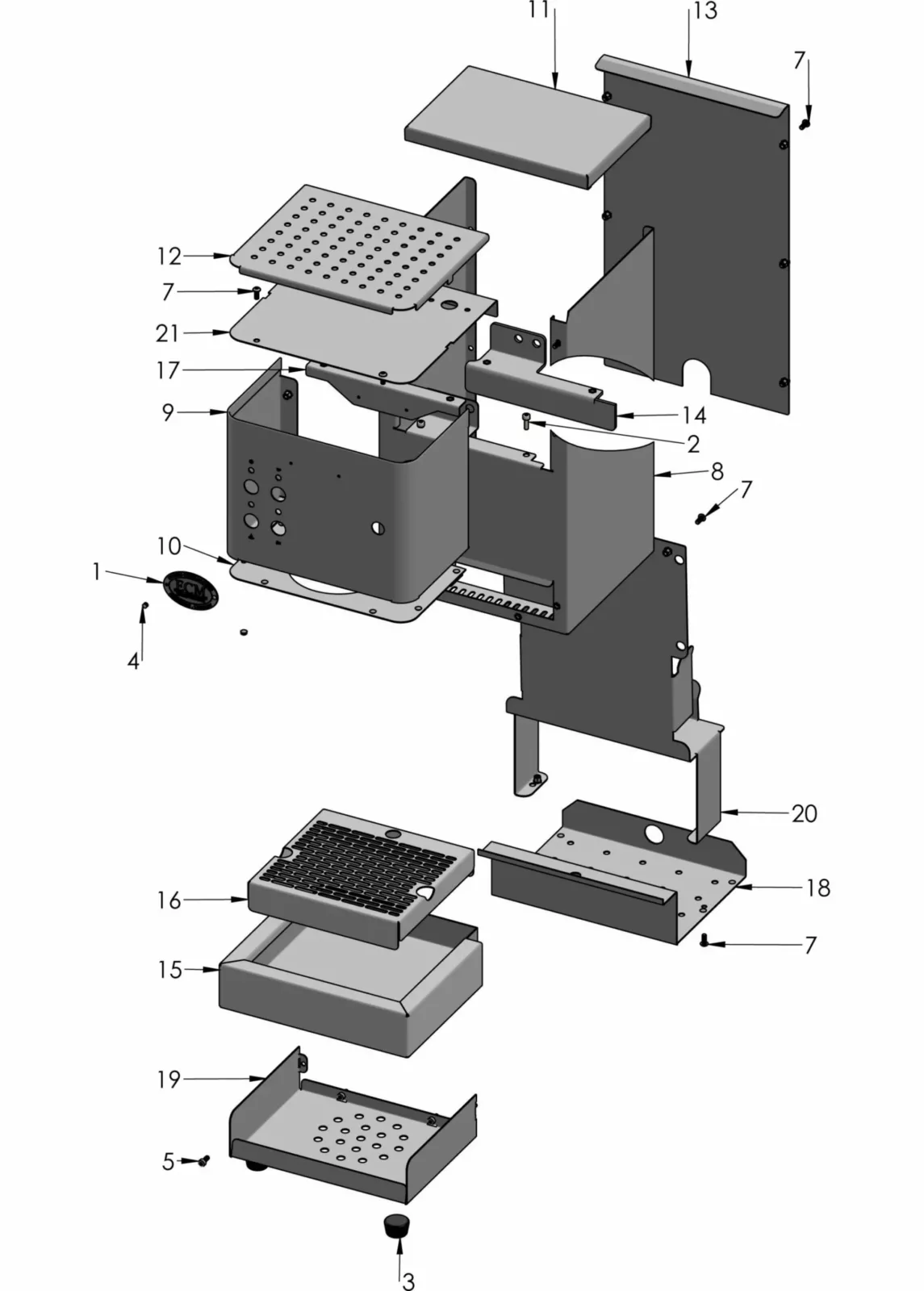

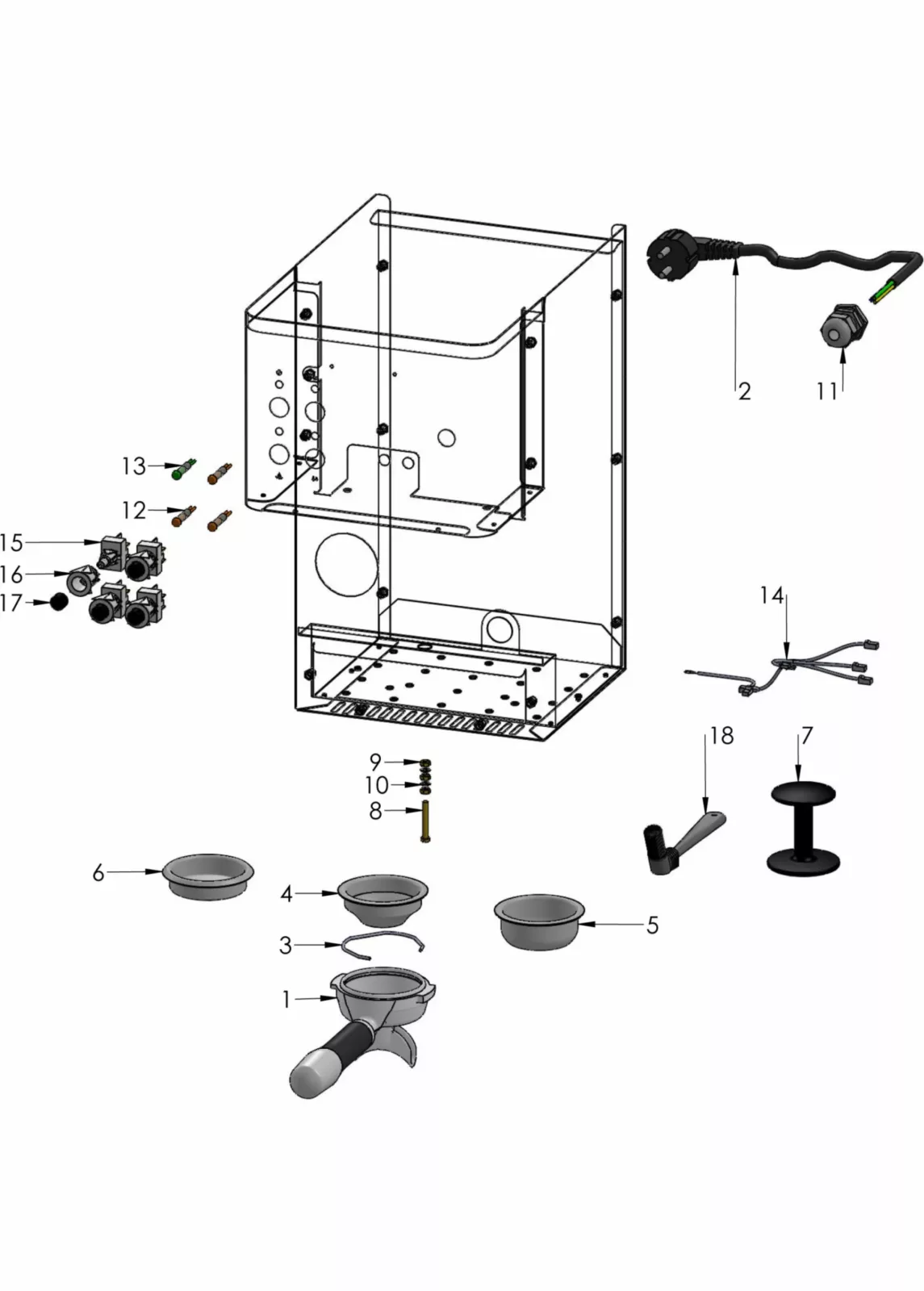

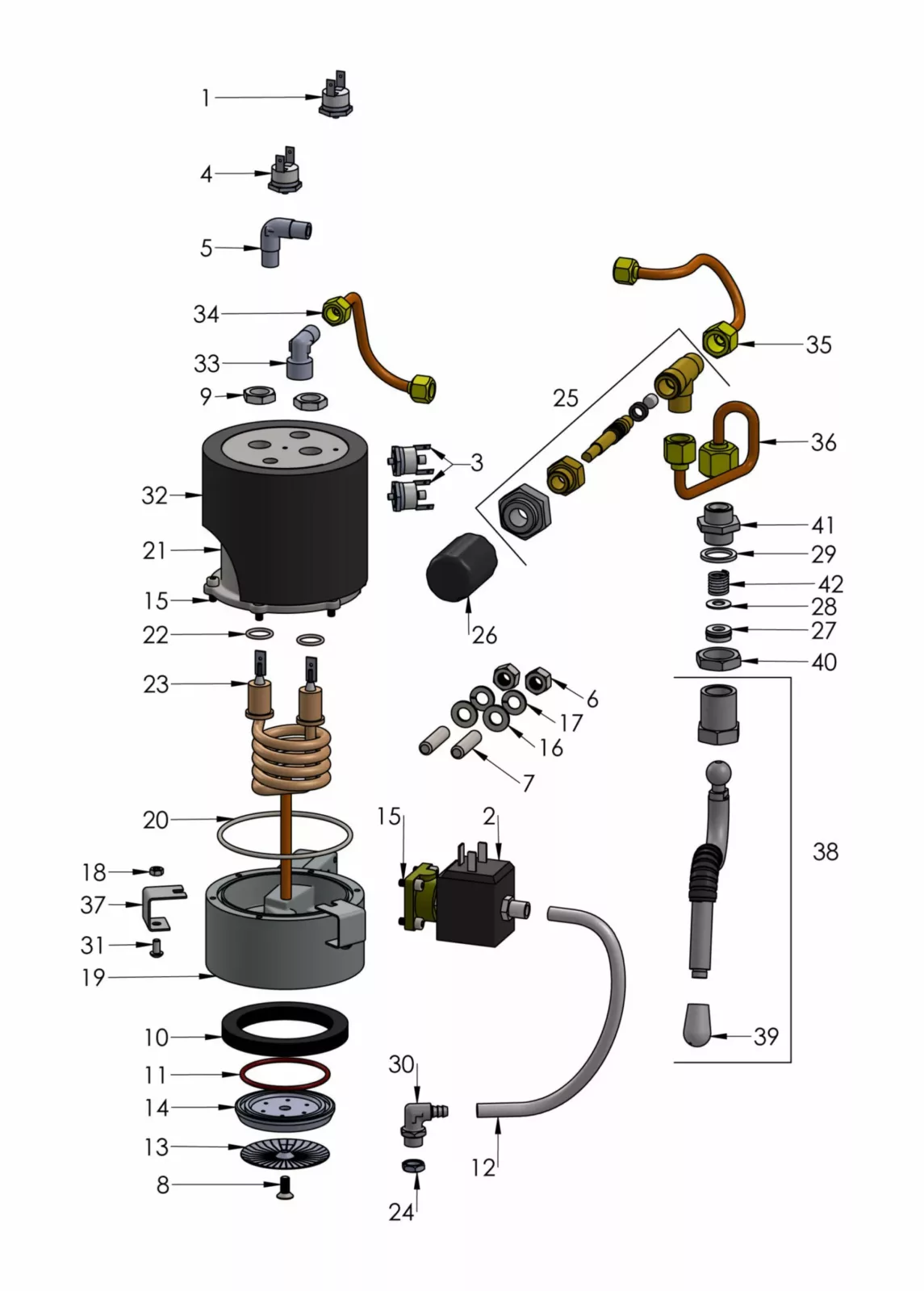

[scroll_to title=”Parts Diagram” link=”Parts”]
[title style=”bold-center” text=”Parts Diagram”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
[/ux_text]
[gap height=”100px”]
[scroll_to title=”Reviews” link=”Reviews”]
[title style=”bold-center” text=”Reviews”]
[ux_text font_size=”1″ font_size__sm=”0.9″]
[yith_ywar_show_reviews_form product_id=20625]
[/ux_text]
[gap height=”100px”]
[scroll_to title=”Q & A” link=”QA”]
[title style=”bold-center” text=”Q & A”]
[ux_text font_size=”1″]
[ywqa_questions]
[/ux_text]
Dan Timmons (verified owner) –
The Casa V meets or exceeds all of my expectations for a high quality expresso machine. Build quality is superb. Switches rock solid. Heats up rapidly. Steam wand does an excellent job of dispensing hot water, which is important to me, as I often add a dash of hot water to my shots. Shipment from 1st-line was remarkably prompt and the product was wonderfully packaged. At this point (I purchased the machine about one month ago), it scores an A+.
